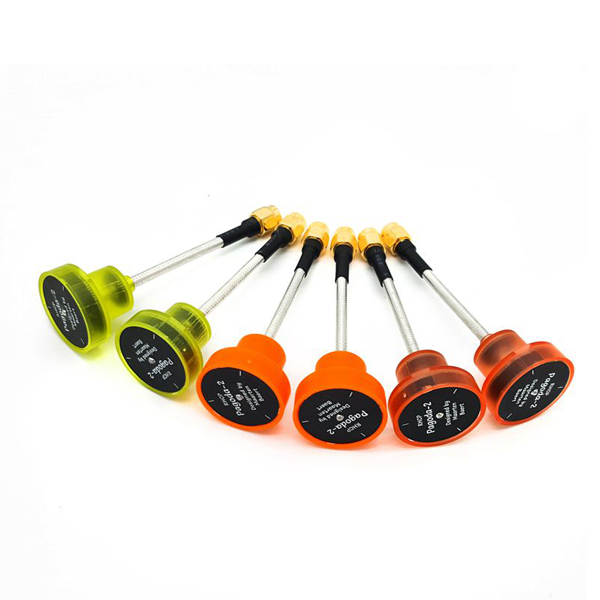

Pagoda-2 Omni Antenna

Pagoda-2 Omni Antenna The Pagoda antenna is an omnidirectional circularly polarized antenna design that Marteen created. His main design goals were: Good omnidirectional radiation pattern. Good axial ratio. Reasonably small. Easy to manufacture within fine tolerances at low cost, even for a hobbyist.Specifications Center frequency: 5.8 GHz Bandwidth: 500 MHz (5.55 – 6.05 GHz) Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency) Axial ratio: < 1.3 Radiation efficiency: 95%Weight:8.9gLength:80mm/55mm(Optional)PatternPackage included:1 x Pagoda-2 Omni Antenna
