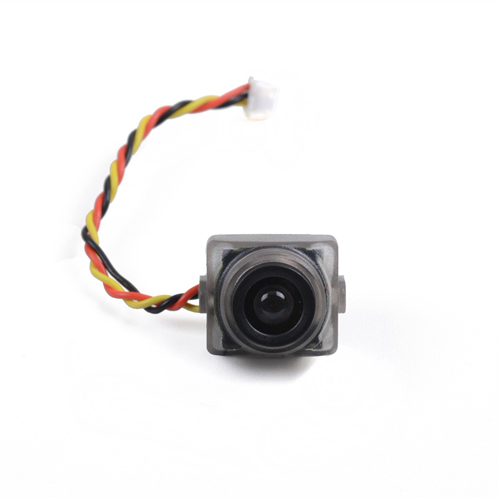

700TVL 1/4 CMOS 170 Degree Wide Angle Lens FPV Camera

700TVL 1/4 CMOS 170 Degree Wide Angle Lens FPV Camera Please be noted that this camera is NTSC and input voltage range is 3.7-5V. Higher input voltage may lead to the damage of the camera.This light weight micro camera is ideal to be used in small multirotors such as those in 90-130sizes.Description: Resolution: 1280 * 960 Resolution: 700TVL Camera Dimensions: 16mm * 14mm * 11mm Illumination: 0.5LUX Format: NTSC Power supply range: 3.7-5V 100mA Audio Lens: Wide-angle 2.8mm (170 degree) Image sensor:1/4 CMOS image sensor Sensitive area: 3.5964mm x 2.7084mm 648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical) Scanning Frequency Horizontal: 15.625KHz Vertical: 50Hz level: 15.7343KHz Vertical: 60Hz Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec) SNR ≥48dB (AGC OFF) Minimum illumination : 0.1 Lux / F1.2 Composite video signal :1.0Vp-p 75Ω Standard Lens :2.8 mm Specifications PCB: 20mm*20mm Power: DC5V ± 10% 70mA ± 10% Operating temperature :-10 ℃ ~ 60 ℃ RH95% MaxPackage included: 1 x 700TVL 1/4 CMOS 170 Degree Wide Angle Lens FPV Camera
